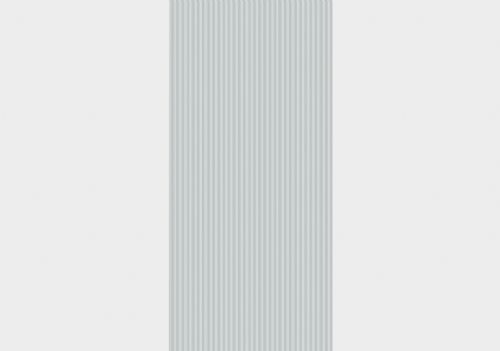

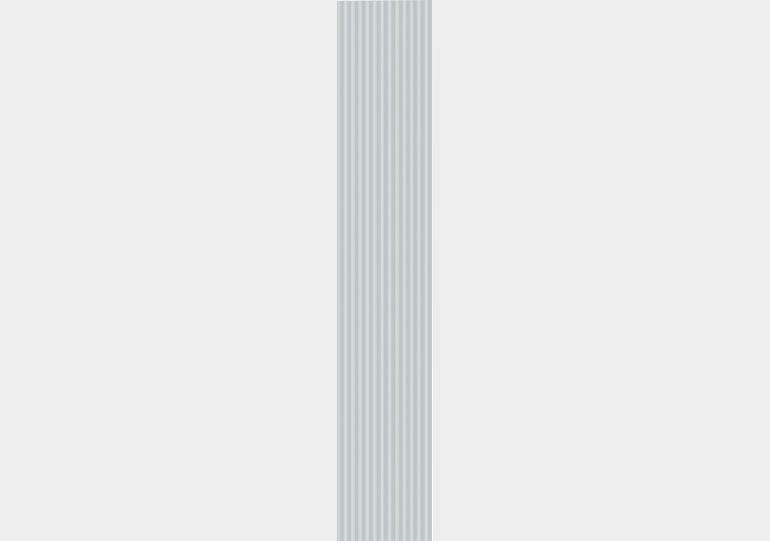

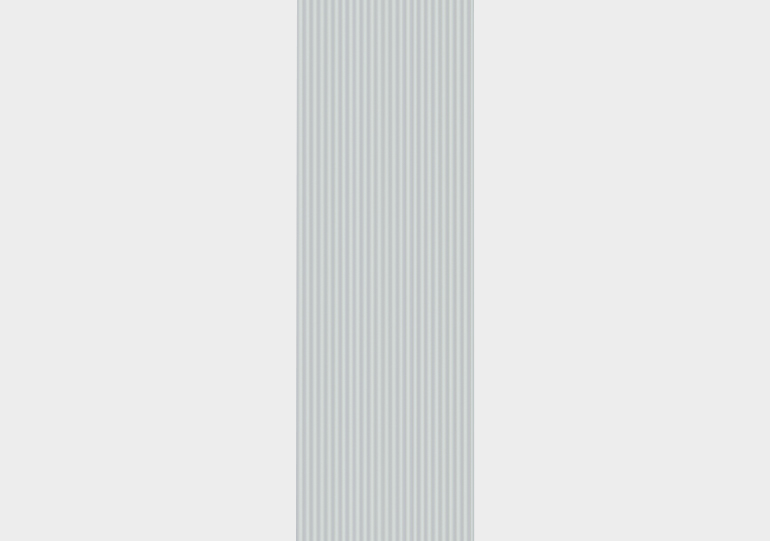

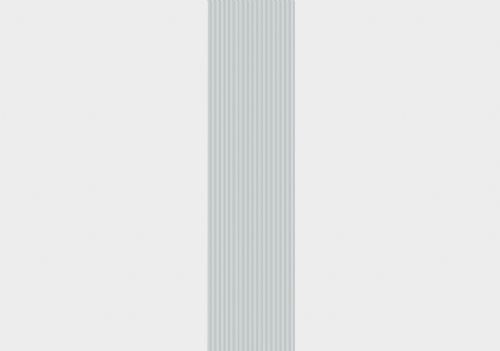

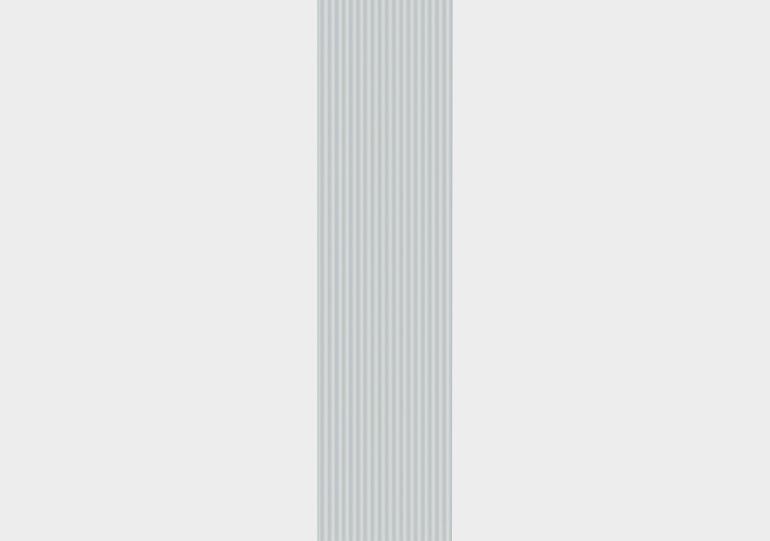

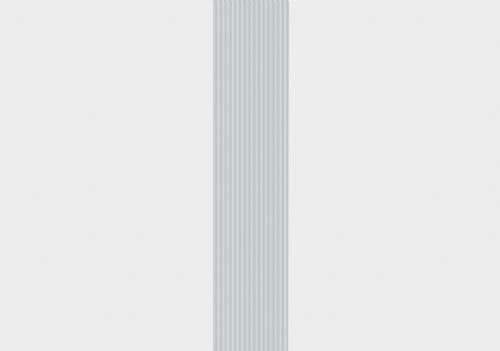

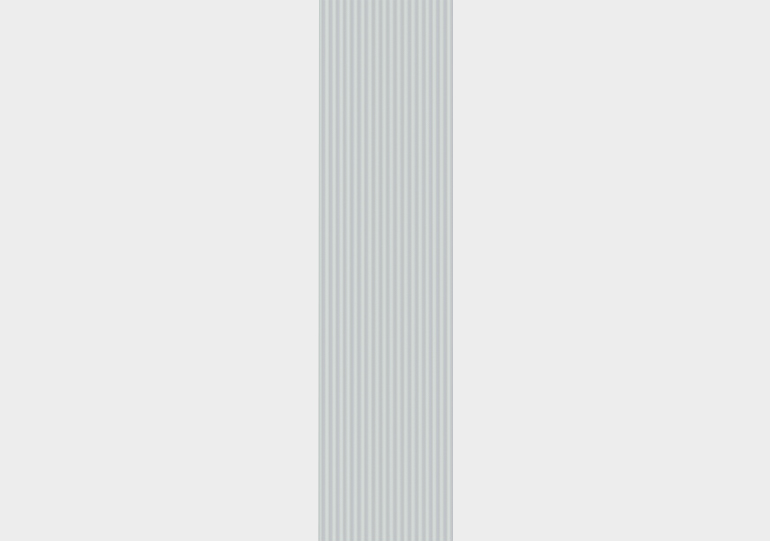

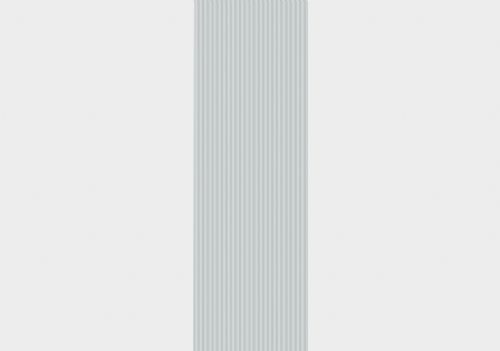

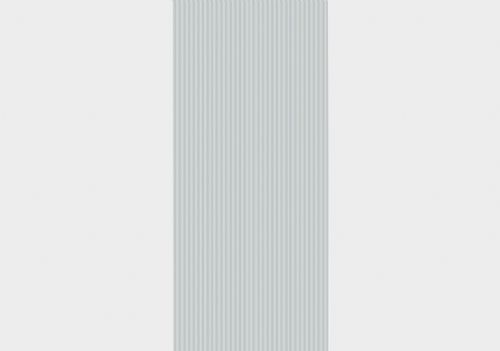

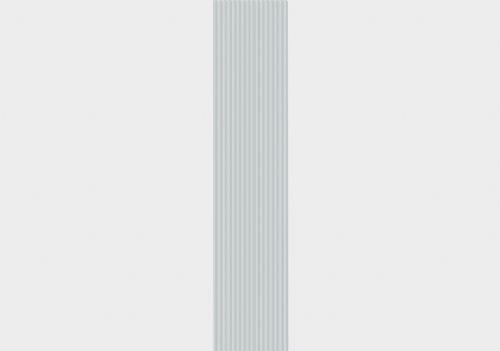

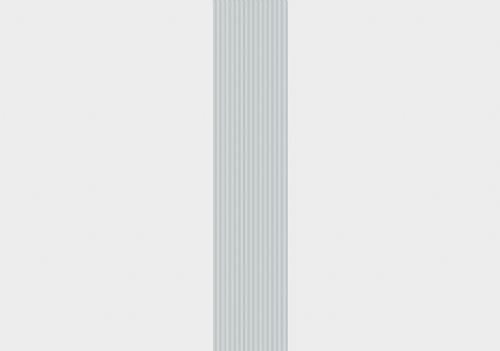

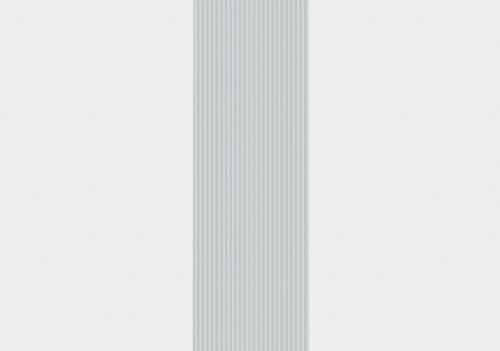

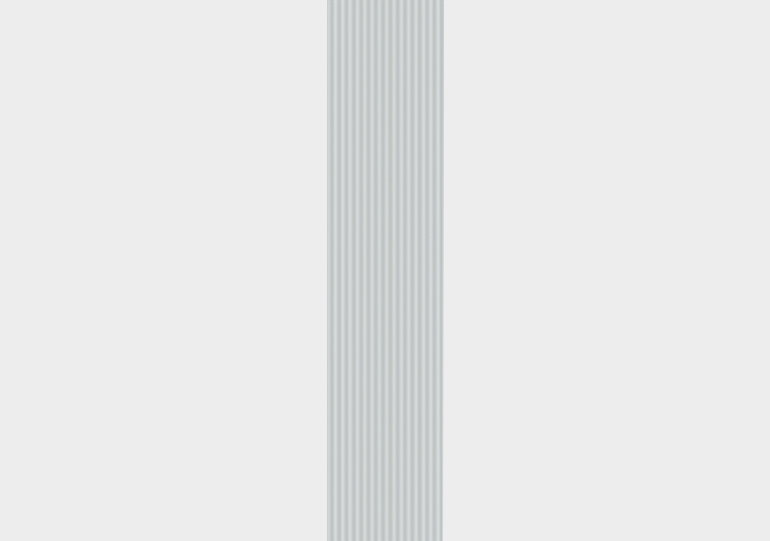

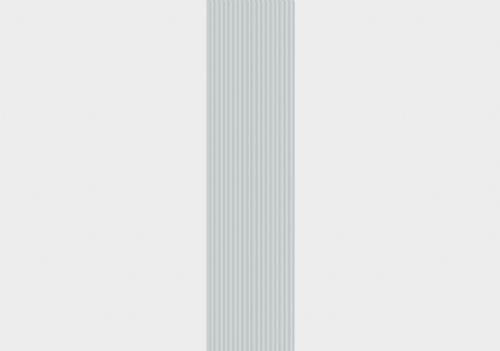

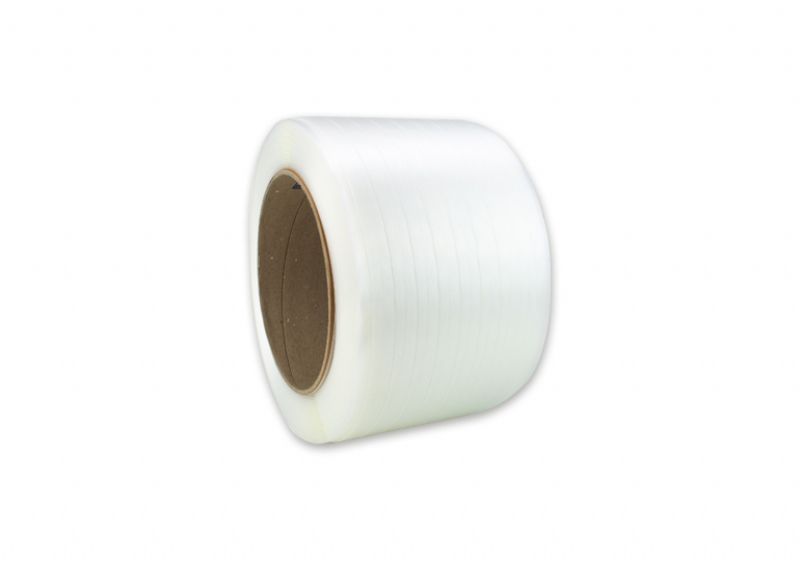

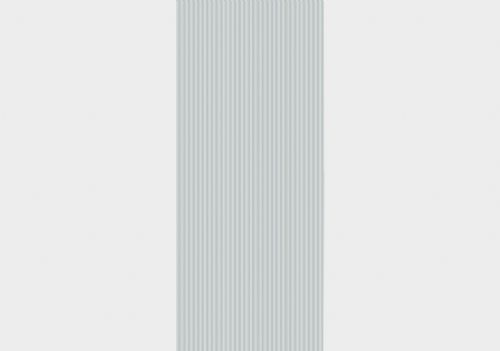

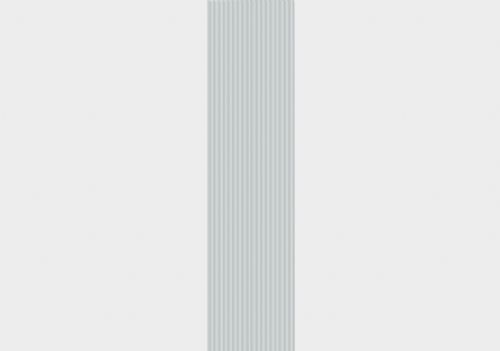

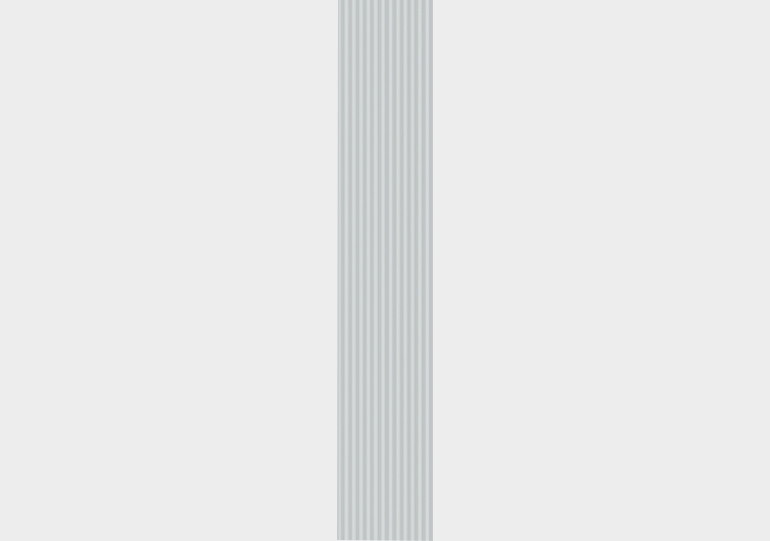

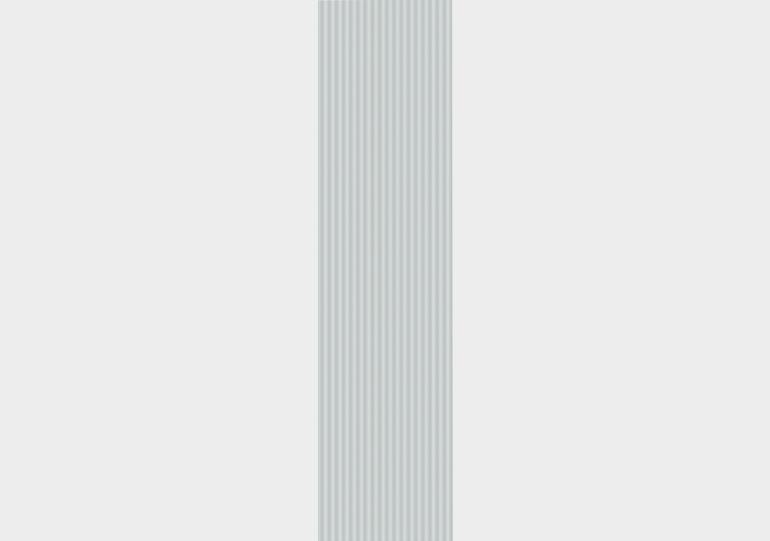

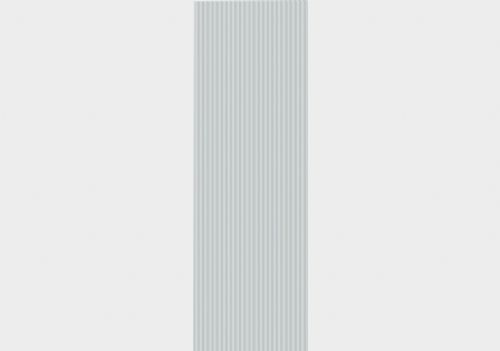

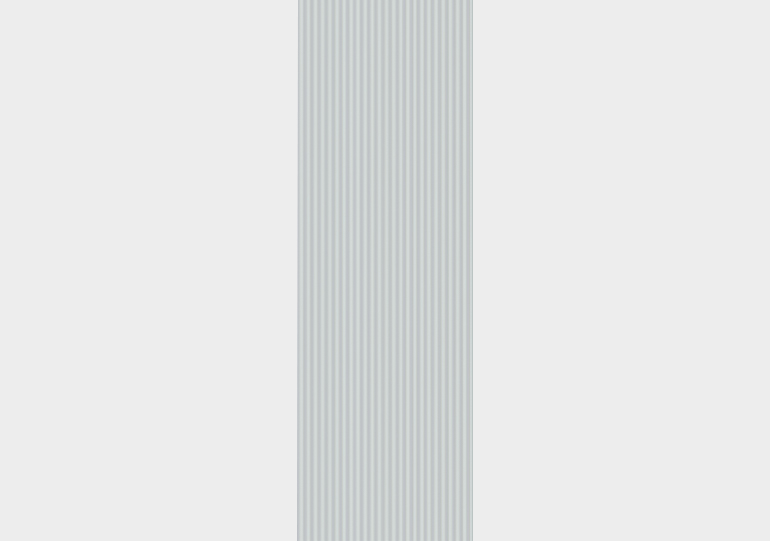

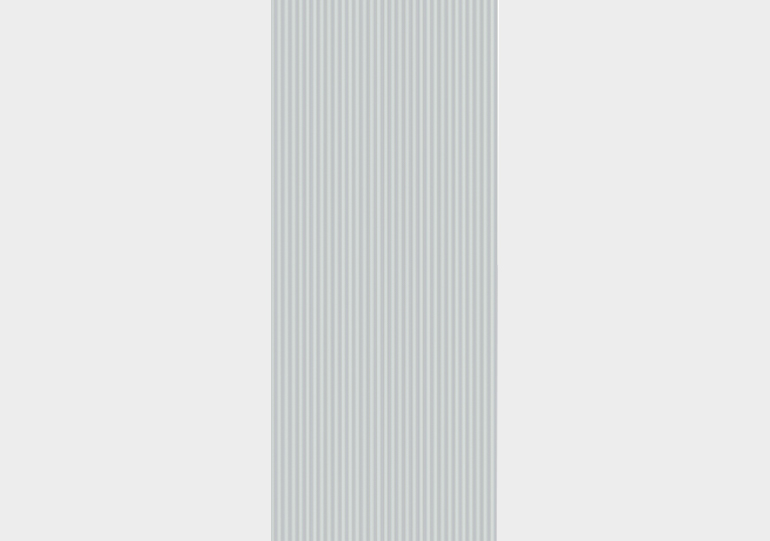

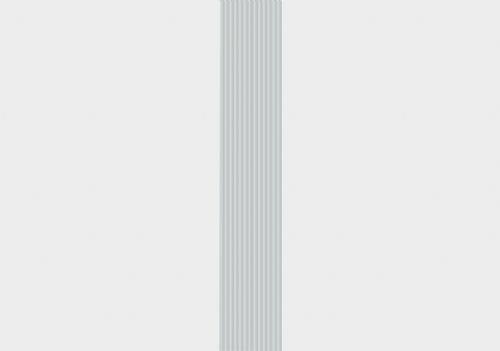

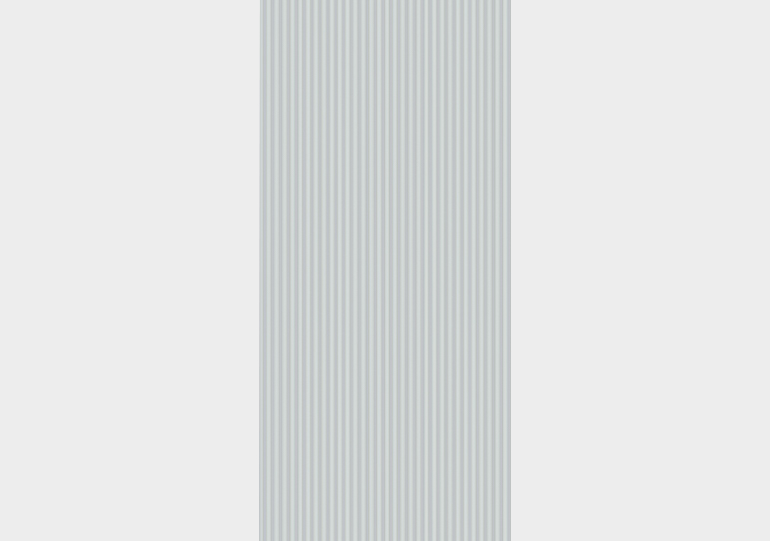

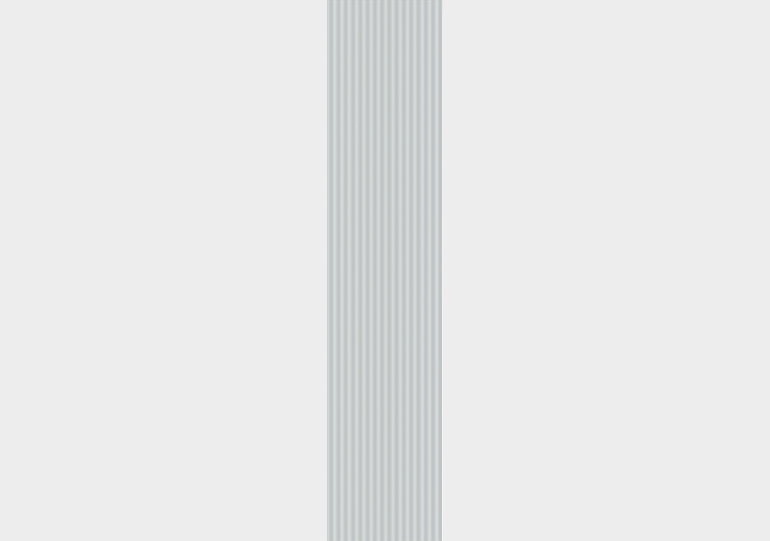

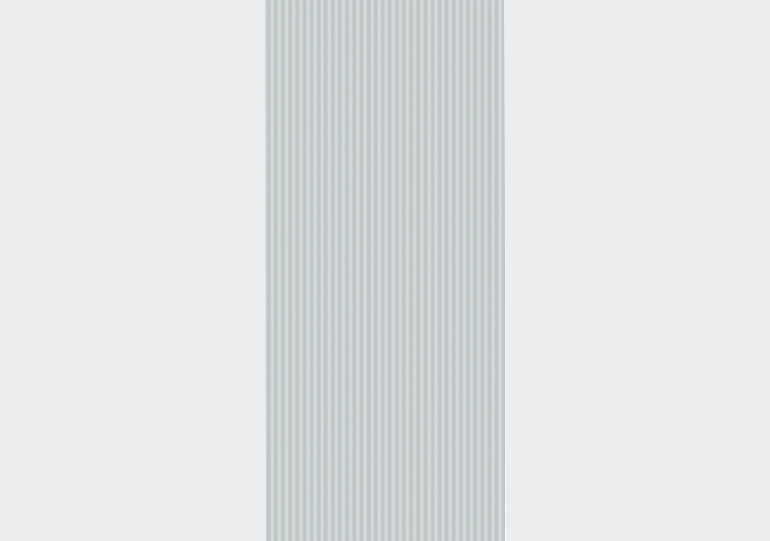

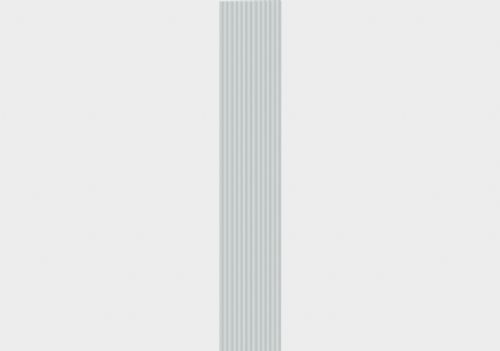

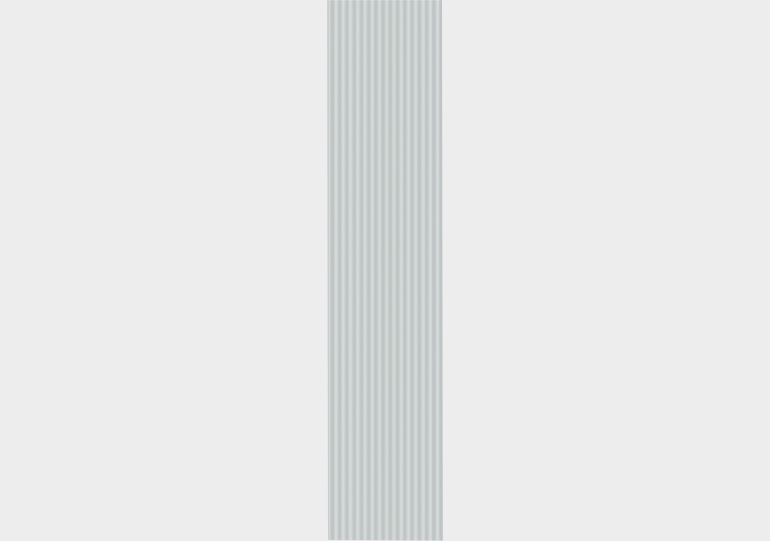

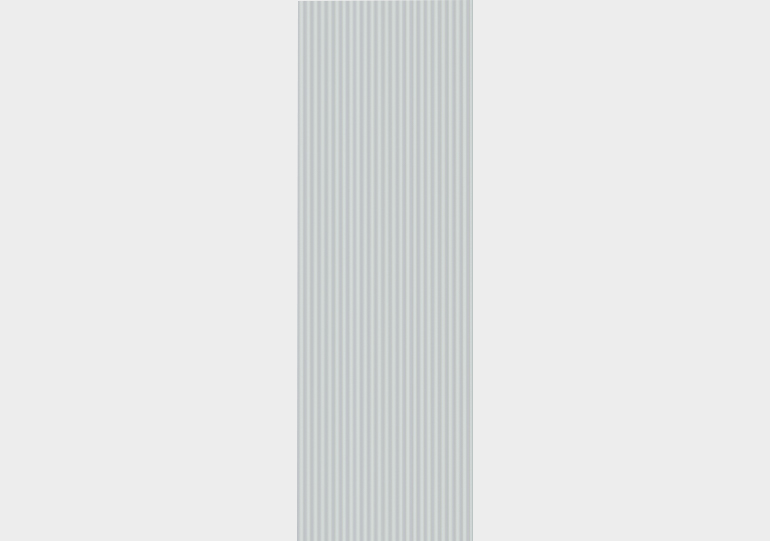

Composite Strap

Composite strapping, produced by combining high-tensile polyester fibers with a polymer coating using the extrusion technique, offers secure application on sensitive surfaces with its shock-absorbing structure.

Composite (CC) strapping, also known as “synthetic steel,” is the latest development in strapping technology. CC strapping is produced from high-strength polyester threads embedded in a polymer coating and is available in a wide range of widths and strengths.



Composite strapping is produced using the Extrusion technique, where polyester threads are coated with plastic. The breaking strength of the strapping is dependent on the number and thickness of the polyester threads used. It is an easy-to-apply strapping option and provides a safer option for delicate surfaces.



Advantages

  • It is easy to use.
  • It is resistant to all weather conditions.

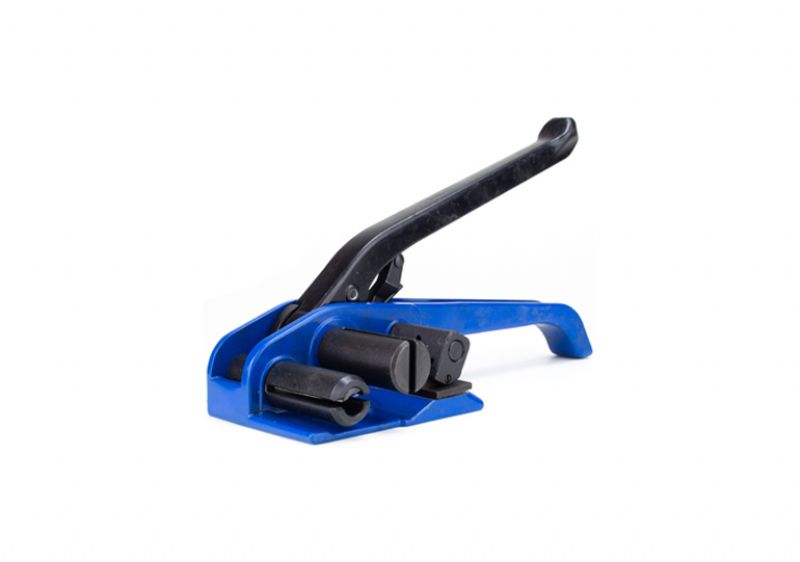

  • It can be applied using low-cost hand tools.
  • It is suitable for delicate packaging.
  • It provides high joint efficiency.
  • It has excellent elongation and elastic memory.



Composite Strapping Technical Measurements

Composite strapping is classified into groups based on its length, width, and strength. You should choose composite strapping that is suitable for your application. These measurements are classified according to the products’ breaking strengths.



Solid Strap straps are produced using high-strength original polyester threads and a special adhesive, just like in composite strapping. They can be used in different strengths depending on the product width and specifications.



Composite fiber straps are especially used in the glass, metal, agriculture, landscaping, automotive, printing, and baling sectors and are resistant to harsh weather conditions.



WIDTH (mm) WIDTH (inch) BREAKING STRENGTH (kgf) BREAKING STRENGTH (lbf) COIL LENGTH (m) COIL LENGTH (ft)
Series L
13 13/25 240 529 1100 3609
16 16/25 310 683 850 2789
19 3/4 330 727 600 1969
25 25/25 440 970 400 1312
32 32/25 510 1124 300 984
Series ST
13 13/25 340 750 1100 3609
16 16/25 450 992 850 2789
19 3/4 500 1102 600 1969
25 25/25 600 1323 500 1640
32 32/25 750 1653 300 984
34 34/25 1400 3086 300 984
Series STR
16 16/25 540 1190 600 1969
19 3/4 600 1323 500 1640
25 25/25 800 1764 500 1640
32 32/25 1150 2535 300 984
34 34/25 1400 3086 300 984
Series ESTR
25 25/25 950 2094 400 1312
32 32/25 1600 3527 300 984
34 34/25 1600 3527 230 755

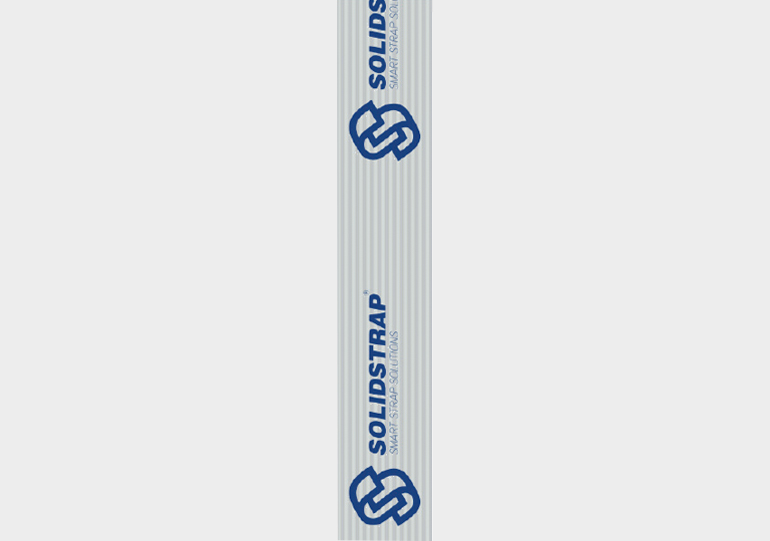

Product Customization

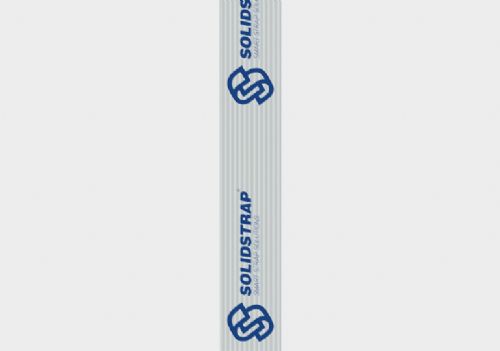

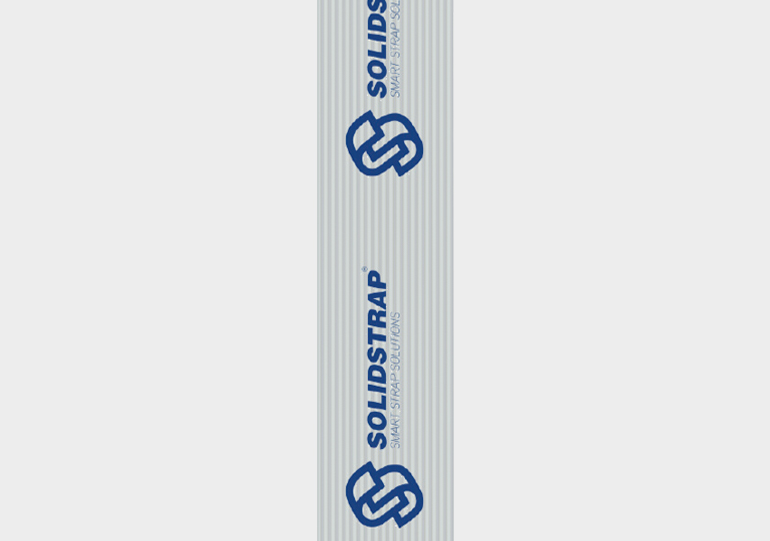

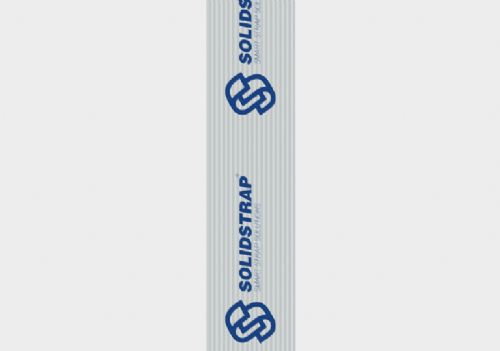

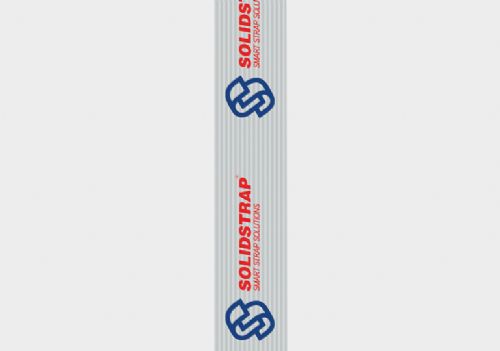

With the latest technologies we use, you can customize and personalize your products according to your needs by printing your brand, slogan, or security-related messages in three different colors.





Advantages

  • You can customize your brand
  • You can build brand awareness
  • You can promote your slogans and mottos
